Aerotech L2200 Mojave Green Rocket Motor


Product Information
Specification

Required Hardware

This motor requires a L2 Certification to buy.

The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-75/5120 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a forward seal disc (75FSD) during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products.

The L2200G-PS is a Plugged/Smoke motor reload. Plugged reload kits do not utilize a motor-actuated delay or ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system.

This RMS motor reload utilizes RCSs exclusive Mojave Green™ aerospace grade composite propellant formulation, which produces a brilliant green exhaust plume with a moderate amount of smoke. Mojave Green™ motors high density and specific impulse delivers a higher total impulse in each motor size than any other AeroTech propellant.

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators and requires HAZMAT shipping via FEDEX.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

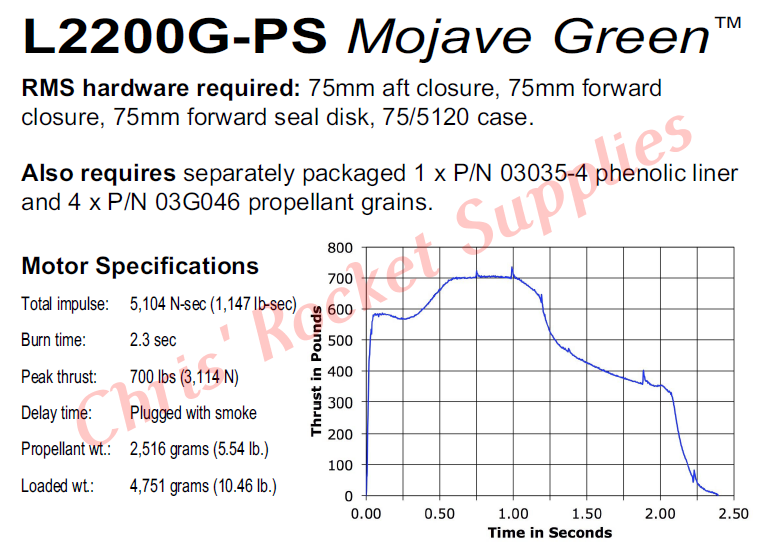

  • Specifications:

    Motor Diameter: 2.965 inches (75mm)

    Casing Length: 26.81 inches (681mm)

    Hardware Required: RMS-75/5120

    Total Impulse: 5104 N-sec

    Average Thrust: 2200 newtons

    Peak Thrust: 3101.7 N-sec

    Thrust Duration: 2.3 seconds

    Delay Time: plugged

    Propellant Weight: 2518 grams

    Motor Weight: 4783 grams

Earn Reward Points: 376

Earn Discount: $11.28

Product Code1067
ManufacturerAerotech Rocketry
ConditionNew
Weight10Lb
