REQUIRED HARDWARE. Can be used in longer cases with the use of a SPACER.
CTI K510 Classic Rocket Motor. This item requires hazmat shipping via FedEx.
This motor requires a L2 Certification to buy.
Brandname | Pro75 2486K510-P | Manufacturer | Cesaroni Technology |
Man. Designation | 2486K510-P-U | CAR Designation | 2486 K510-P-U |
Test Date | 12/16/2003 | | |
Single-Use/Reload/Hybrid | Reloadable | Motor Dimensions mm | 75.00 x 350.00 mm (2.95 x 13.78 in) |
Loaded Weight | 2590.00 g (90.65 oz) | Total Impulse | 2486.00 Ns (559.35 lb-s) |

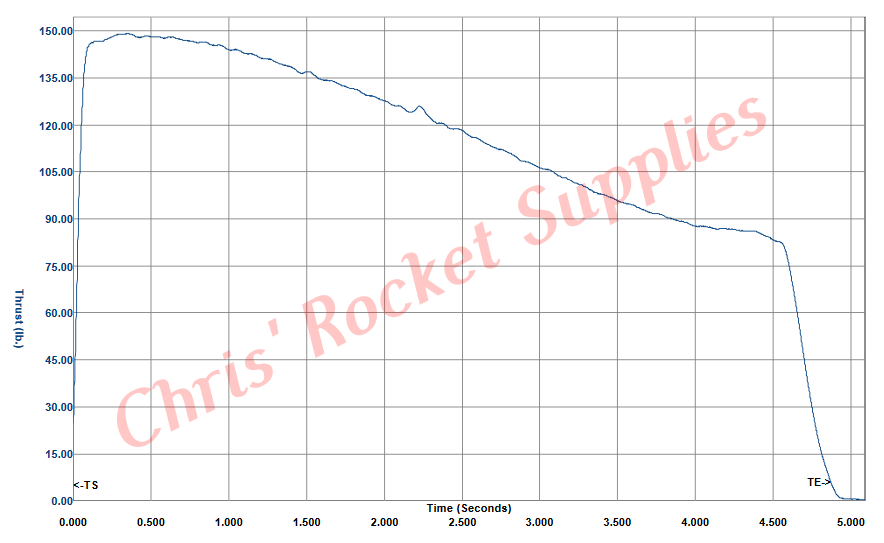

Propellant Weight | 1197.00 g (41.90 oz) | Maximum Thrust | 689.75 N (155.19 lb) |
Burnout Weight | 1322.00 g (46.27 oz) | Avg Thrust | 514.00 N (115.65 lb) |
Delays Tested | plugged | ISP | 211.80 s |
Samples per second | 1000 | Burntime | 4.84 s |
Notes | "Pro75 Motor, with classic propellant, now certified for use in Aerotech cases" |
CTI K510 Classic Rocket Motor
Hazmat will be applied during checkout
This motor requires a L2 Certification to buy.
