REQUIRED CASING. This motor has an adjustable delay which requires a DRILL TOOL. Can be used in longer cases with the use of a SPACER.
CTI J330-16A Classic Rocket Motor. This item requires hazmat shipping via FedEx.
This motor requires a L2 Certification to buy.
Brandname | Pro38 765J330-16A | Manufacturer | Cesaroni Technology |
Man. Designation | 765J330-16A | CAR Designation | 765-J330-16A |
Test Date | 5/9/2002 | | |
Single-Use/Reload/Hybrid | Reloadable | Motor Dimensions mm | 38.00 x 421.00 mm (1.50 x 16.57 in) |

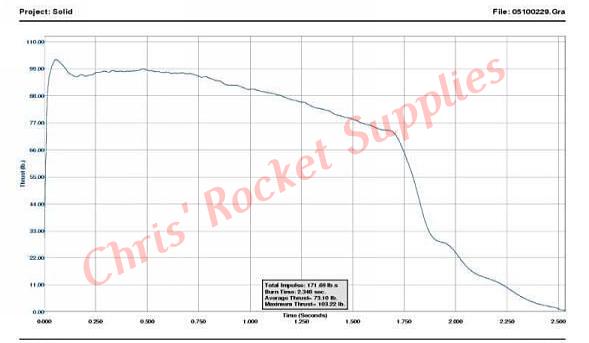

Loaded Weight | 702.00 g (24.57 oz) | Total Impulse | 765.00 Ns (172.13 lb.s) |
Propellant Weight | 375.00 g (13.13 oz) | Maximum Thrust | 459.32 N (103.35 lb) |
Burnout Weight | 310.00 g (10.85 oz) | Avg Thrust | 325.29 N (73.19 lb) |
Delays Tested | "16,13,11,9,7" | ISP | 207.95 s |
Samples per second | 1000 | Burntime | 2.26 s |
Notes | Classic™ |
