REQUIRED CASING. This motor has an adjustable delay which requires a DRILL TOOL. Can be used in longer cases with the use of a SPACER.
CTI J290-15A White Rocket Motor. This item requires hazmat shipping via FedEx.
This motor requires a L2 Certification to buy.

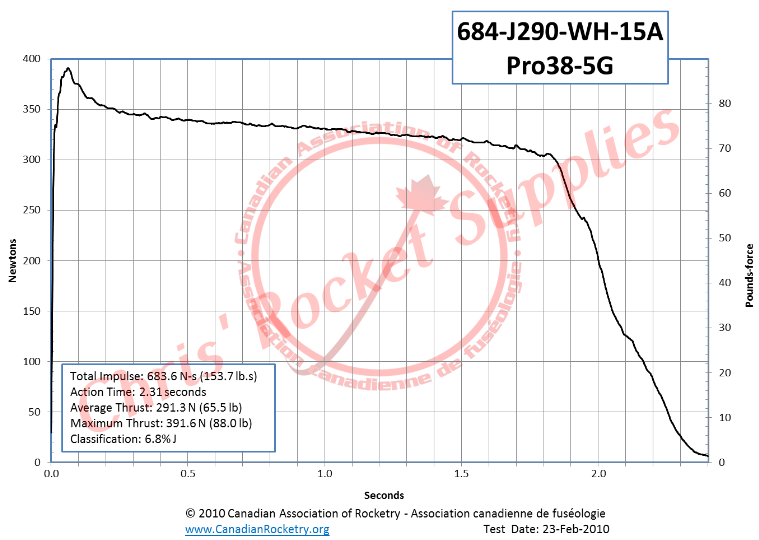

Brandname | Pro38 684J290-15A | Manufacturer | Cesaroni Technology |
Man. Designation | 684J290-15A | CAR Designation | 684-J290-15A |
Test Date | 4/17/2010 | | |
Single-Use/Reload/Hybrid | Reloadable | Motor Dimensions mm | 38.00 x 367.00 mm (1.50 x 14.45 in) |
Loaded Weight | 659.8 g | Total Impulse | 683.6 Ns (153.7 lb.s) |
Propellant Weight | 381.5 g | Maximum Thrust | 391.6 N (88.0 lb) |
Burnout Weight | 256.8 g | Avg Thrust | 295.4 N (66.4 lb) |
Delays Tested | "15,12,10,8,6" | ISP | 182.72 s |
Samples per second | 1000 | Burntime | 2.31 s |
Notes | White™ |
