REQUIRED CASING. This motor has an adjustable delay which requires a DRILL TOOL. Can be used in longer cases with the use of a SPACER.

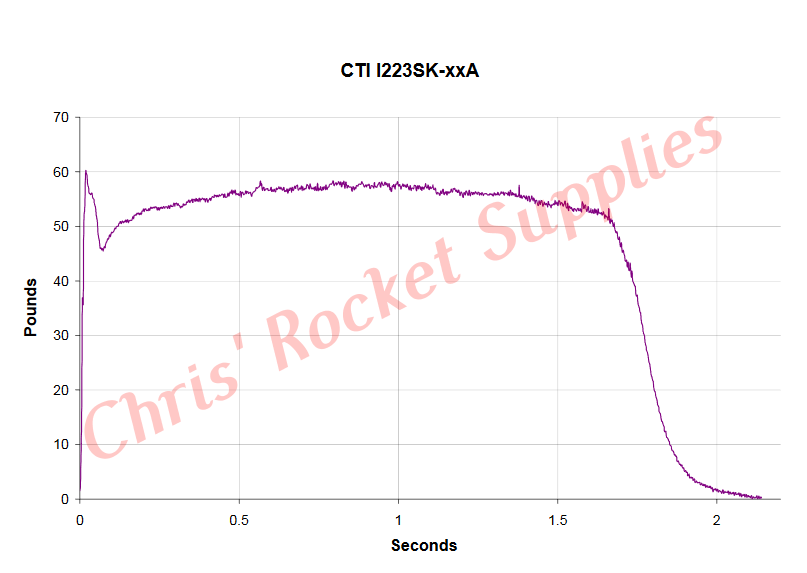

CTI I223-14A Skidmark Rocket Motor. This item requires hazmat shipping via FedEx.
This motor requires a L1 Certification to buy.
Brandname | Pro38 434I223-14A | Manufacturer | Cesaroni Technology |
Man. Designation | 434I223-14A | CAR Designation | 434-I223-14A |
Test Date | 2/14/2009 | | |
Single-Use/Reload/Hybrid | Reloadable | Motor Dimensions mm | 38.00 x 303.00 mm (1.50 x 11.93 in) |
Loaded Weight | 494 g | Total Impulse | 434.05 Ns |
Propellant Weight | 266 g | Maximum Thrust | 259.6 N |
Burnout Weight | | Avg Thrust | 223.39 N |
Delays Tested | "14,11,9,7,5" | ISP | 166.34 s |
Samples per second | 1000 | Burntime | 1.94 s |
Notes | Skidmark™ |
