REQUIRED CASING and CLOSURE. This motor has an adjustable delay which requires an ADAPTER RING to use with the DRILL TOOL.
CTI I224-15A Classic Rocket Motor. This item requires hazmat shipping via FedEx.
This motor requires a L1 Certification to buy.

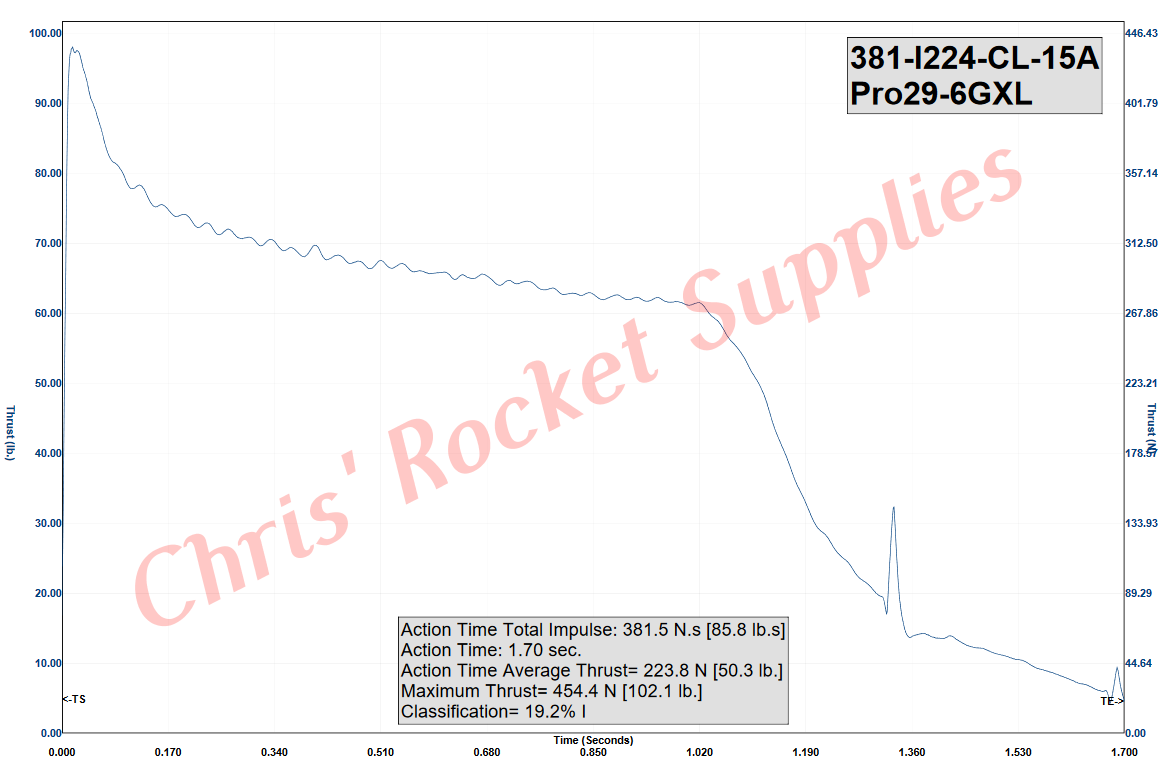

Brandname | Pro29 381I224-15A | Manufacturer | Cesaroni Technology |
Man. Designation | 381I224-15A | CAR Designation | 381-I224-15A |
Test Date | 8/12/2009 | | |
Single-Use/Reload/Hybrid | Reloadable | Motor Dimensions mm | 29.00 x 365.00 mm (1.14 x 14.37 in) |
Loaded Weight | 370.0 g | Total Impulse | 381.5 Ns (85.8 lb-s) |
Propellant Weight | 182.5 g | Maximum Thrust | 454.4 N (102.1 lb) |
Burnout Weight | 173.3 g | Avg Thrust | 223.8 N (50.3 lb) |
Delays Tested | "15,12,10,8,6" | ISP | 213.12 s |
Samples per second | 1000 | Burntime | 1.70 s |
Notes | Classic™ |
