Screw Switch Cover Guide

Screw Switch Cover Guide
  • Click to enlarge

5.0 average, based on 1 reviews

$1.50

Product Information
Specification

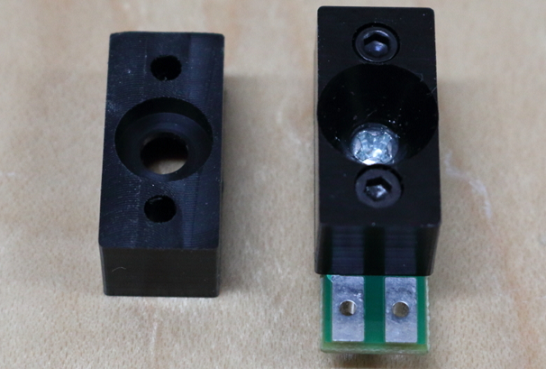

These custom machined, Black Delrin Cover-Guides by Attebery Performance Engineering are the perfect compliment to our Screw Switches. As a screwdriver guide, it makes finding the screw head in your altimeter bay much easier. As a cover, the pocketed backside hole captures the screw so it cannot fall out.

Specs:
--------
0.375" tall x .0.400" wide x 0.875" long
Screwdriver hole is 0.375 diameter with a 60 degrees taper.
Sized for a precision #1 screwdriver
2.7g each

These cover-guides require a #4 cap head screw for mounting {not included).

Earn Reward Points: 1

Earn Discount: $0.03

Product Code2473
ManufacturerInverted Pursuits Lab
Stock Level204
ConditionNew
Weight0.01Lb

Customer Reviews

Average Rating: 5

Use this with the MW screw switch

12345
These screw guides make using the MW screw switch super easy to access with the rocket on the pad. They also prevent the screw from backing out too far when you disarm the avionics. (20 Sep 2024, 09:33)
