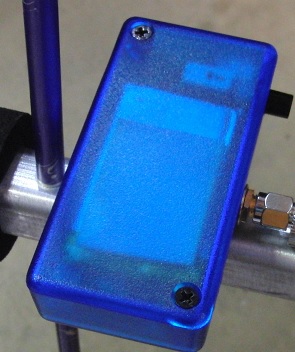

TeleBT is a ground station for use with Altus Metrum flight computers that provides both USB and Bluetooth connectivity. Use TeleBT with AltOS on notebook computers, and with AltosDroid on Android phones and tablets. There is also a compatible iOS application available for sale from our friends at Iron Sheep Productions.

User View

  • 70cm ham-band transceiver compatible with Altus Metrum products, programmed for 38k4 GFSK data rate with forward error correction
  • Bluetooth / Bluetooth LE radio
  • micro USB interface
  • 4 pin Tyco MicroMaTch connector for debug and flash programming
  • 850mAh LiPo battery charged via USB

Developer View

  • STM32F042 System-on-Chip
    • ARM Cortex-M0 MCU
    • 32k Flash
    • 6k RAM
    • USB 2.0 Full Speed
  • CC1200 Low Power, High Performance RF Transceiver
  • RN4678 Bluetooth module
  • Firmware Features
    • Written mostly in C with some ARM assembler
    • Runs from on-chip flash, uses on-chip RAM
    • USB serial emulation for data interface
  • Tools Used
    • gEDA for schematic capture and PCB layout
    • GCC compiler and source debugger
  • Licenses

Earn Reward Points: 150

Earn Discount: $4.50

Accessories & Essentials
TeleBt Mount
TeleBt Mount
$6.50
Interface Cable - SMA 9.8in
Interface Cable - SMA 9.8in
$6.00
SMA-BNC Connector
SMA-BNC Connector
$10.00
Arrow Antenna 3E Yagi
Arrow Antenna 3E Yagi
$85.00
Product Code1526
ManufacturerAltus Metrum
Stock Level10
ConditionNew
Weight0.15Lb

Customer Reviews

Average Rating: 4

Excellent, with reservations

12345
The TeleBT is a solid addition to the TeleMega or TeleMetrum altimeters in terms of functions, but there are three issues to bear in mind. First, the MicroUSB connector on the TeleBT (and the TeleMega, at least) is surface mount only, not "through the board". I had the connectors break off both boards immediately after purchase and returned them to Altus Metrum for repair, only one of which was successful. Since the USB port is used for battery charging, plan on strengthening the connectors. While the TeleMega battery can be easily charged externally, the TeleBT battery is not as easy to access. Second, the Bluetooth functionality for the TeleBT is limited to a third party company, although Altus Metrum has been aware of the issue for years. Third, the TeleBT obviously must be attached to an antenna to be useful - plan on an additional $50 or so for a good yagi. Otherwise, the units seem to be extremely nice in terms of functionality. If the MicroUSB connectors were more robust, I'd give five stars with no hesitation. (11 May 2018, 16:07)
