Aerotech L1420 Redline Rocket Motor


Product Information
Specification

Required Hardware

This motor requires a L2 Certification to buy.

The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-75/5120 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a forward seal disc (75FSD) during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products.

The L1420R-PS is a Plugged/Smoke motor reload. Plugged reload kits do not utilize a motor-actuated delay or ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system.

This RMS motor reload utilizes RCSs exclusive Redline™ aerospace grade composite propellant formulation, which produces a visible scarlet flame. Redline™ motors burning rate lies midway between that of White Lightning™ and Blue Thunder™. Photos don’t do justice to the “laser-beam” intensity and color of Redline™…. you have to see it to appreciate it!

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators and requires HAZMAT shipping via FEDEX.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

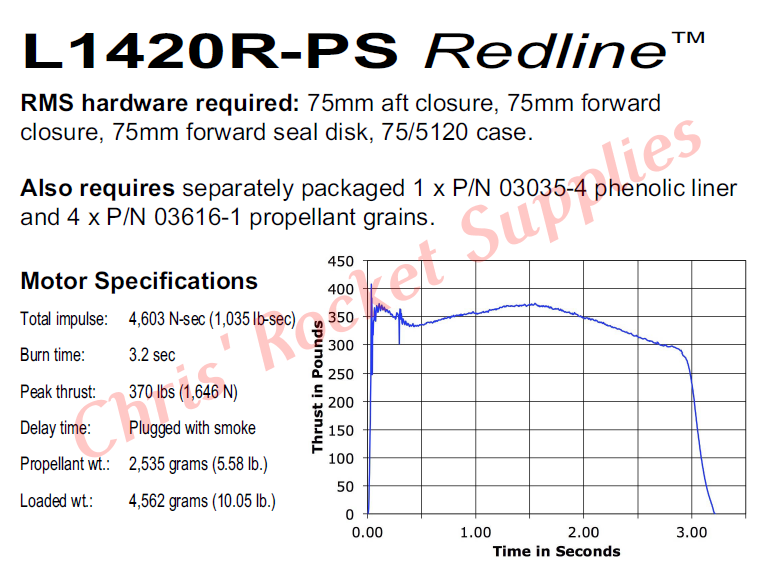

  • Specifications:

    Motor Diameter: 2.965 inches (75mm)

    Casing Length: 26.81 inches (681mm)

    Hardware Required: RMS-75/5120

    Total Impulse: 4603 N-sec

    Average Thrust: 1420 newtons

    Peak Thrust: 1814 N-sec

    Thrust Duration: 3.2 seconds

    Delay Time: plugged

    Propellant Weight: 2560 grams

    Motor Weight: 4562 grams

Earn Reward Points: 376

Earn Discount: $11.28

Product Code1064
ManufacturerAerotech Rocketry
ConditionNew
Weight10Lb
