Aerotech K540M-14A Metal Storm Rocket Motor


Product Information
Specification

Required Hardware

This motor requires a L2 Certification to buy.

The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-54/1706 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a forward seal disc (54FSD) during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products. You will need to set the desired delay time using the 54mm Delay Drilling Tool (54RDDT), not included.

This RMS motor reload utilizes RCSs exclusive Metalstorm™ aerospace grade composite propellant formulation. Metalstorm™ is a sparky propellant, lights easily and produces a large brilliant white exhaust plume, a long yellow-orange dense spark trail, and plentiful white sparks that fan out in flight. As with all rocket motors using spark-generating propellants, special precautions must be taken to avoid fires around the launch pad by clearing the immediate area of all combustible materials in accordance with applicable fire and safety codes.

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators and requires HAZMAT shipping via FEDEX.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

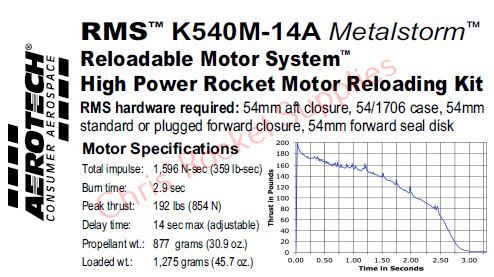

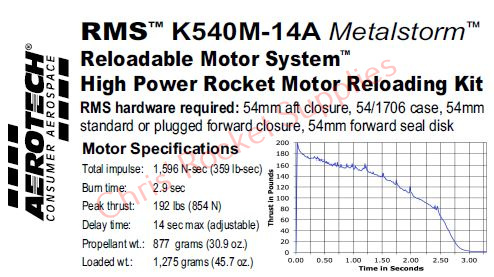

  • Specifications:

    Motor Diameter: 2.125 inches (54mm)

    Casing Length: 17.20 inches (437mm)

    Hardware Required: RMS-54/1706

    Total Impulse: 1596.3 N-sec

    Average Thrust: 557.4 newtons

    Peak Thrust: 854 N-sec

    Thrust Duration: 2.9 seconds

    Delay Time: adjustable up to 14 seconds

    Propellant Weight: 877 grams

    Motor Weight: 1275 grams

Earn Reward Points: 167

Earn Discount: $5.01

Product Code1047
ManufacturerAerotech Rocketry
ConditionNew
Weight2.75Lb
